UTO-NBL-51M
Home > PRODUCTS > UTO-NBL-51M

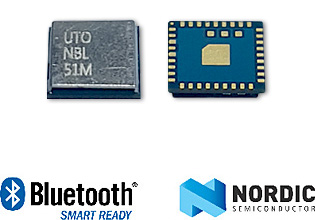

The UTO-NBL-51M is Bluetooth Low Energy Module.
It enables high performance and ultra-low power connectivity for a data communication. The product is an ideal solution form Internet of Things (IOT) applications
Features
- Bluetooth v4.1 Compliant
- Nordic nRF51822
- 32-bit ARM Cortex-M0 Processor
- Up to 30 GPIO pins, 8 Analog Inputs
- 256kB Flash/ 32kB RAM
- 10-bit ADC
- Digital Interfaces : I2C, SPI, UART
- Temperature: -40°C to +85°C
- Dimensions: 6.4 x 6.8 x 1.6 mm
Applications
- Internet of Things (IOT) Connected Devices and Appliances
- Wearables
- SmartHome sensors
- Connected white goods
- Computer peripherals
- Voice-command smart remotes
- Beacons
- Sports and fitness sensors and hubs
- Connected health products
- Smart watches
- RC Toys
- Interactive games
- Building automation and sensor networks
Module Specifications
- Supply Voltage : 1.8V to 3.6V
- Dimensions : 6.4 x 6.8 x 1.6 mm
- Temperature : -40° to +105°C (Operating), -40° to +120°C (Storage)
- Protocols : Bluetooth Low Energy v4.2, ANT, Gazelle, Proprietary 2.4GHz
- GPIOs : Up to 30 GPIOs, 8 Analog
- Current : Rx active 13mA, Tx active 11.8mA
- Module Pads : LGA
- Clock Sources : 32MHz crystal (Main), 32.768kHz (RTC)
- Processor : 32-bit ARM Cortex-M0 Processor
- Memory : 256kB Flash / 32kB RAM
Bluetooth Specifications
- Specification : Single Mode Bluetooth Smart v4.1
- Modes : Peripheral and Central Modes, Observer, Broadcaster
Radio Specifications
- Power Output : -20 dBm to +4 dBm
- Receiver Sensitivity : -93 dBm
- Data Rates : 250 kbps, 1 Mbps, 2 Mbps
Peripherals
- Timers : 3 x 16/24-bit
- SPI : Master and Slave
- I2C : Master and Slave
- UART
- ADC : 8 Channel 10-bit
- PWM
